Ammeter, NSN 6625-01-228-5676, P/N 9-2150-747, NEW!

Ammeter

NSN 6625-01-228-5676

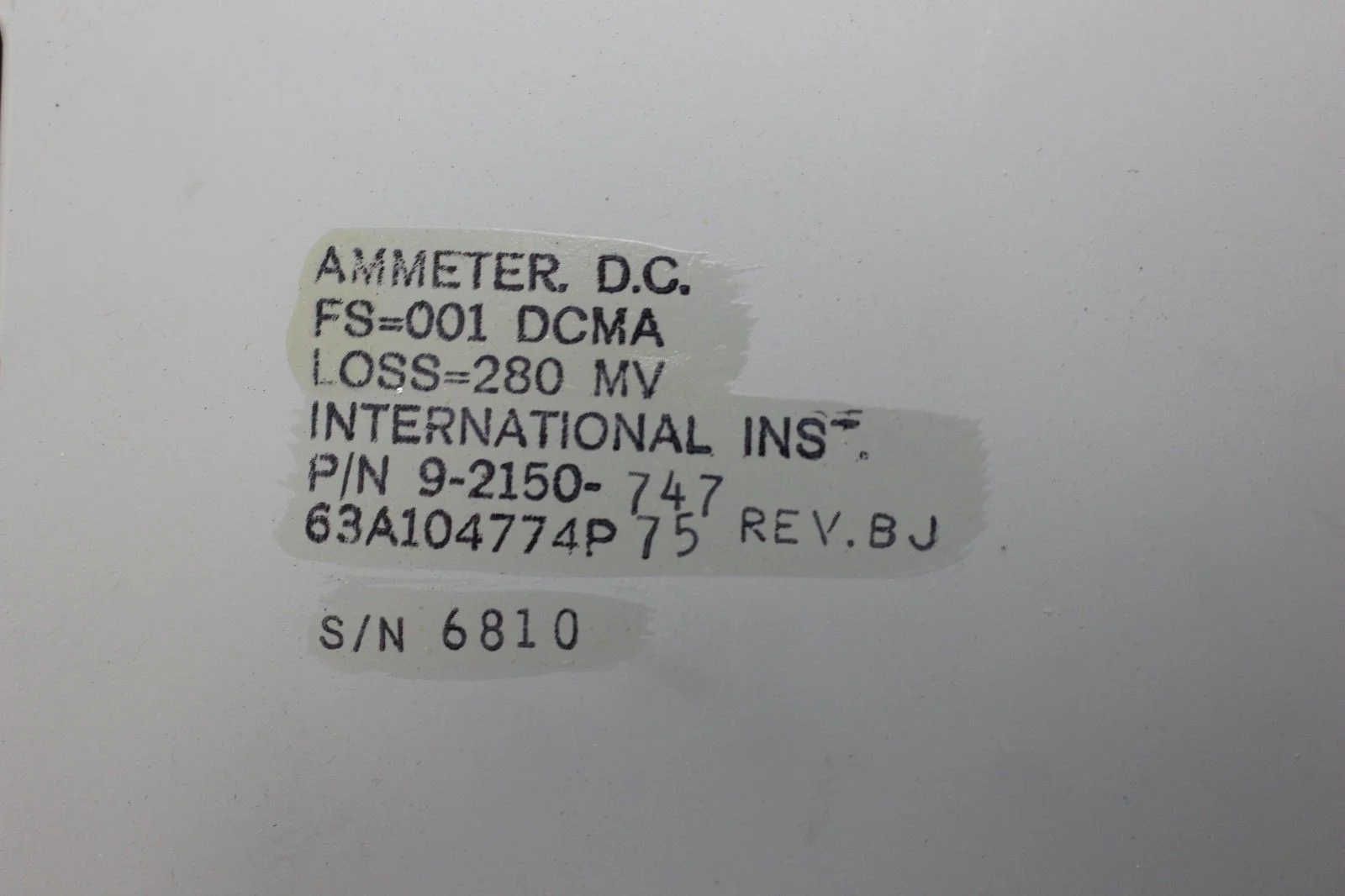

P/N 9-2150-747

Circuit Currant: DC

Dielectric Withstanding Voltage in Volts: 1500.0

Overall Length: 7.730 Inches Nominal

Overall Height: 1.540 Inches Nominal

Overall Width: 6.720 Inches Nominal

Center to Center Distance Between Mounting Facilities Parallel to Length: 6.045 inches min and 6.055 inches max

Center to Center Distance Between Mounting Facilities Parallel to Width: 0.720 inches min and 0.730 inches max

Environmental Protection: Dripproof and shock resistant and vibration resistant

Indicator Type: Dial With Pointer

Sensitivity Rating: 1.0 milliamperes

Condition: New, has been in storage.
