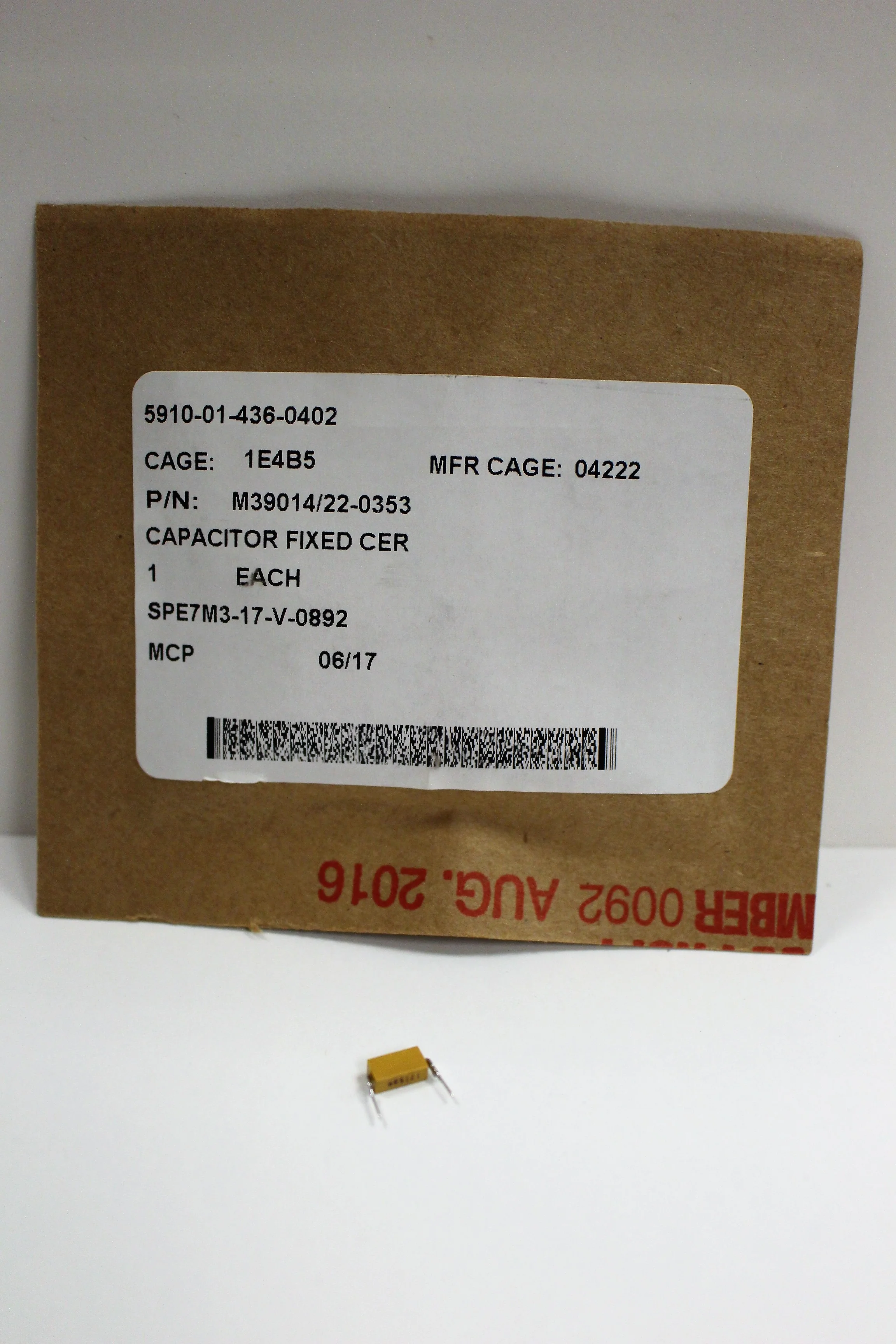

Ceramic Dielectric Fixed Capacitor, 5910-01-436-0402, M39014/22-0353, New

Ceramic Dielectric Fixed Capacitor

NSN: 5910-01-436-0402
Part Numbers: M39014/22-0353, MIL-C-39014/22C, MIL-PRF-39014/22
Body Length: 0.260 inches nominal
Body Width: 0.092 inches nominal
Body Height: 0.128 inches nominal
Schematic Diagram Designator: No common or grounded electrode(s)
Capacitance Value per Section: 27.000 picofarads single section
Nonderated Operating Temp: 125.0 deg celsius maximum
Nonderated Continuous Voltage Rating and Type per Section: 200.0 dc single section
Tolerance Range per Section: -5.00/+5.00 percent single section
Case Material: Plastic
Terminal Type and Quantity: 2 tab, solder lug
Condition: New
