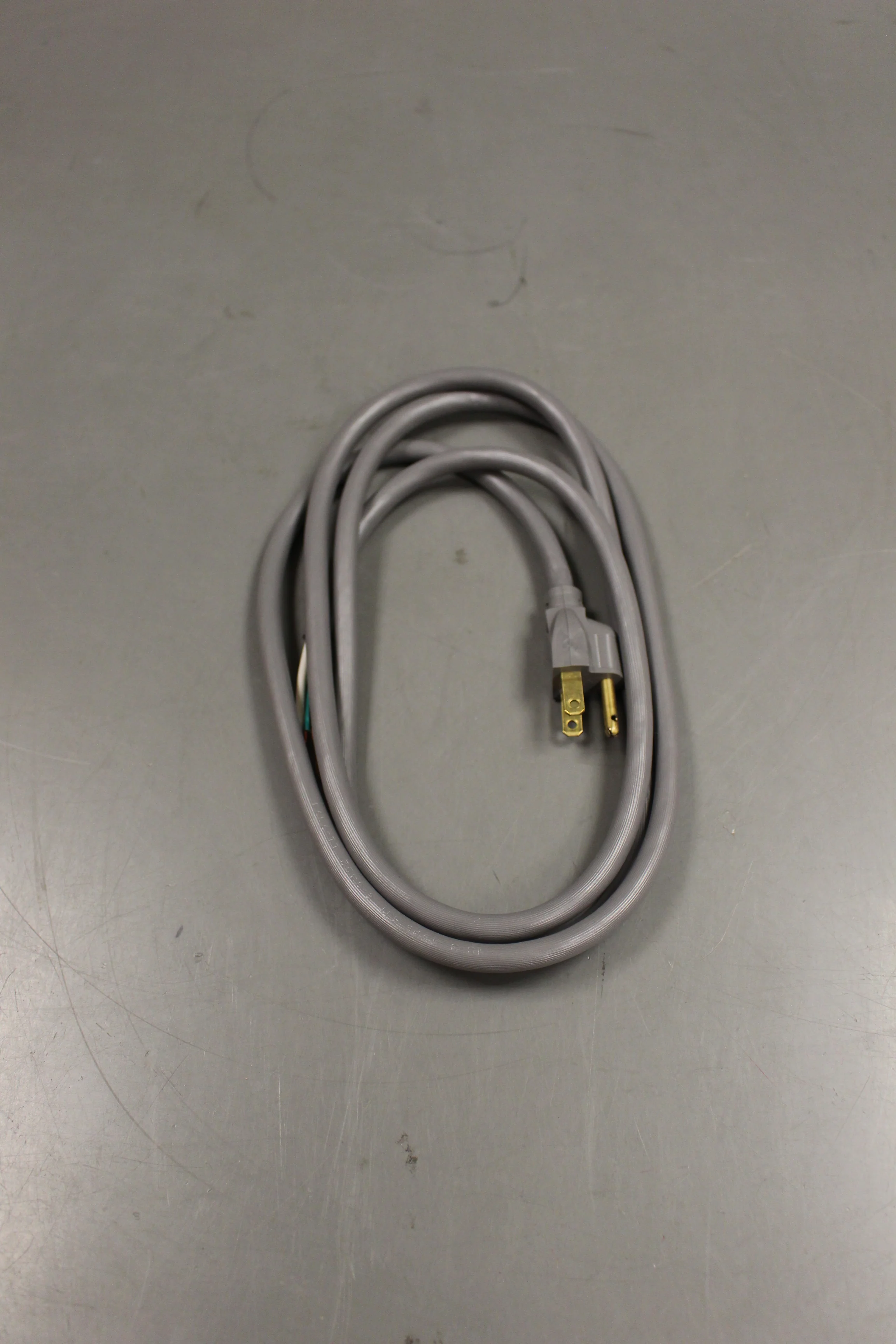

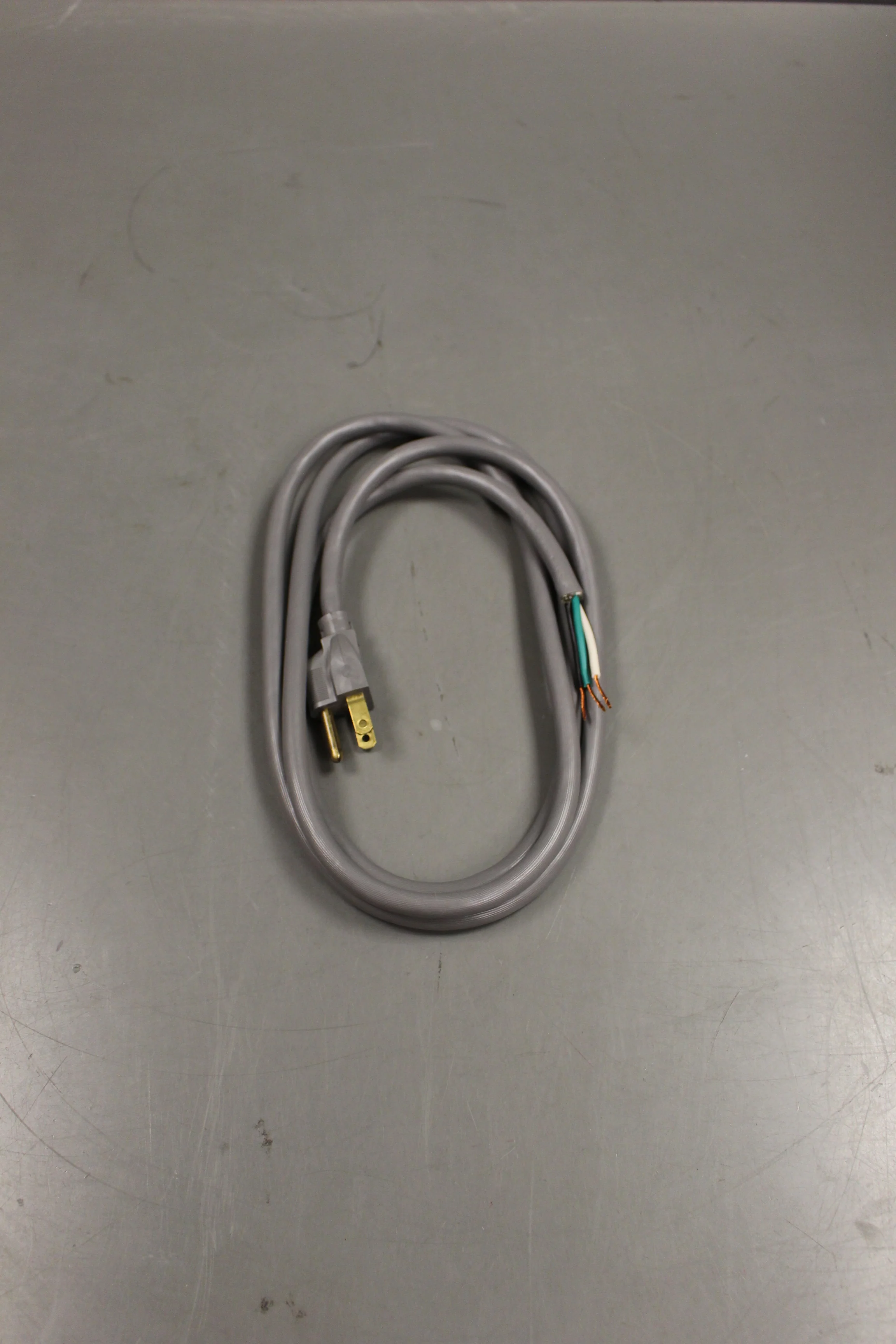

Electrical Power Cable Assembly, 6625-00-081-4465, 17405B, New

Electrical Power Cable Assembly

NSNs: 6625-00-081-4465, 6150-00-935-5235, 5995-00-137-6108
Part Numbers: 17405B, 210208, 17405, ECM-405, 12042, 1002-028
New

Cross Sectional Shape: Round
Overall Length: 6.000 feet
Temperature Rating: 60.0 degrees Celsius
Cross Section Outside Diameter: 0.328 inches
Termination Type: Connector external straight 1ST end all conductors
Conductor Quantity: 2
Accessory Wire Type And Quantity: 1 ground
Strand Quantity Per Conductor: 16 all conductors
Conductor Form: Stranded all conductors
Round Conductor Size: 18 awg all conductors
Strand Awg Size Per Conductor: 30 all conductors
Conductor Arrangement And Quantity: 2 singles
Voltage Rating: 300.0 ac rated working voltage all conductors
Terminal Manufacturer Identifying Reference Number: PH-185 1ST end all conductors
Terminal Commercial And Government Entity Code: 16428 1ST end all conductors
Individual Conductor Length: 2.000 inches 2ND end all conductors
Color: Gray 1ST position cover all conductors
Material: Plastic 1ST position primary insulation all conductors
Style Designator: External connector and stripped
