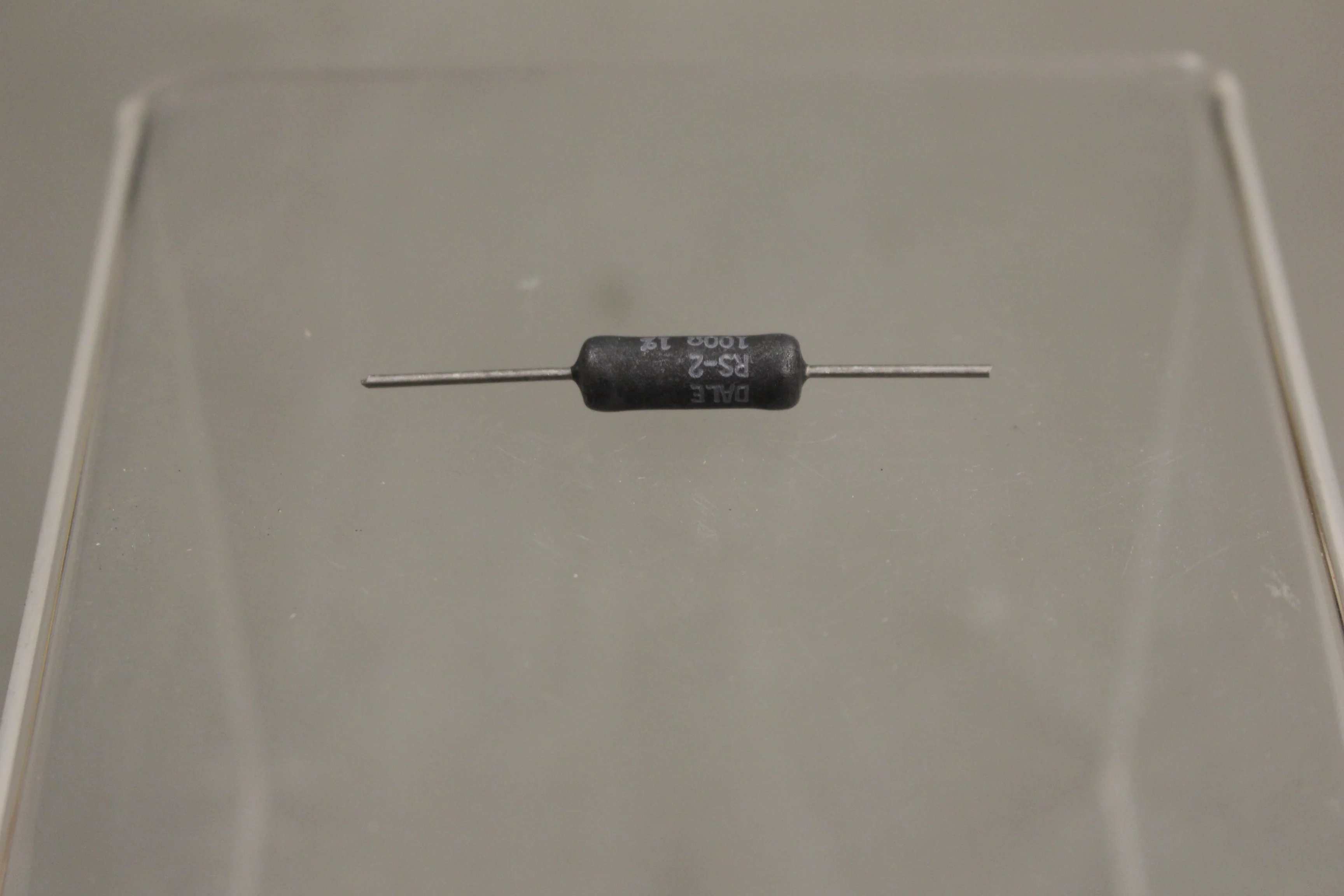

Inductive Wire Wound Fixed Resistor / Fuse Resistor, 5905-00-035-5065

Inductive Wire Wound Fixed Resistor / Fuse Resistor

NSN: 5905-00-035-5065
Part Numbers: RS2-1000HM0-1PCT, RS2-100R0B
Condition: New. May not be in original packaging.

Temperature Coefficient Of Resistance In Ppm Per Deg Celsius: -20.0/+20.0
Electrical Resistance: 100.000 ohms
Resistance Tolerance In Percent: -0.100 to 0.100
Ambient Temperature In Deg Celsius At Full Rated Power: 25.0
Ambient Temperature In Deg Celsius At Zero Percent Rated Power: 275.0
Temperature Range Of Temperature Coefficient In Deg Celsius: -55.0/+275.0
Inclosure Method: Encapsulated
Terminal Type: Wire lead
Reliability Indicator: Not established
Body Diameter: 0.250 inches
Body Length: 0.625 inches
Power Dissipation Rating In Watts: 4.000 free air
Style Designator: Axial terminal each end
