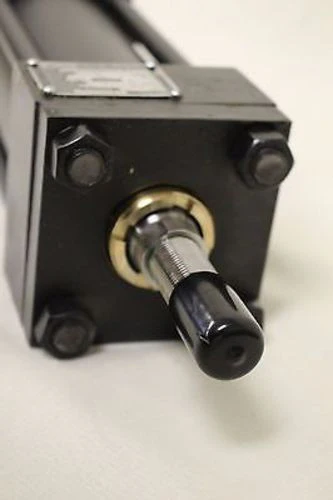

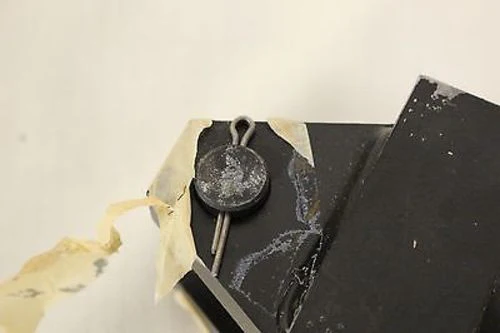

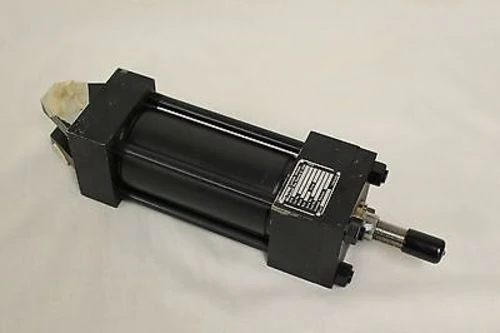

Parker-Hannifin Actuating Line Cylinder Assembly, 3040-01-416-3346, GAG168853-A

Parker-Hannifin Actuating Line Cylinder Assembly

NSN: 3040-01-416-3346

Part Number: GAG168853-A

First End Outside Diameter: 0.750 Inches Nominal

Mounting Provision: Pin

Mounting Facility Length: 1.250 Inches Nominal

Overall Height: 3.500 Inches Nominal

Overall Width: 3.500 Inches Nominal

Bore Diameter: 2.500 Inches Nominal

First End External Thread Length: 2.250 Inches Nominal

Compressed Length: 12.625 Inches Nominal

Extended Length: 17.125 Inches Nominal

Integral Valve Operation Method: Hydraulic

Condition: New but have been in long term storage.
