Semiconductor Device, Diode, NSN 5961-00-350-8248, NEW!
Semiconductor Device Diode

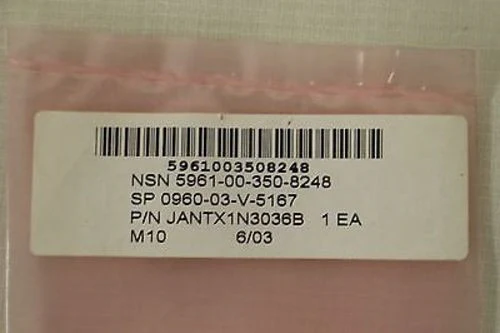

NSN: 5961-00-350-8248
P/N: JANTX1N3036B
Condition: NEW!
Electrode internally-electrically connected to case - Cathode
Current rating per characteristic - 5.50 milliamperes all primaries horsepower metric and 19.00 milliamperes repetitive peak forward current nominal
Features provided - Hermetically sealed case
Inclosure material - Metal
Overall diameter - 0.215 inches minimum and 0.265 inches maximum
Overall length - 0.371 inches maximum
Maximum operating temp per measurement point - 175.0 deg celsius ambient air
Mounting method - Terminal
Power rating per characteristic - 1.0 watts small-signal input power, common-collector preset
Semiconductor material - Silicon
Terminal length - 1.000 inches minimum
Terminal type and quantity - 2 uninsulated wire lead
Voltage rating in volts per characteristic - 47.0 nominal nominal regulator voltage
Voltage tolerance in percent - -5.0/+5.0
Original: $1.50
-70%$1.50
$0.45Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Semiconductor Device Diode
NSN: 5961-00-350-8248
P/N: JANTX1N3036B
Condition: NEW!
Electrode internally-electrically connected to case - Cathode
Current rating per characteristic - 5.50 milliamperes all primaries horsepower metric and 19.00 milliamperes repetitive peak forward current nominal
Features provided - Hermetically sealed case
Inclosure material - Metal
Overall diameter - 0.215 inches minimum and 0.265 inches maximum
Overall length - 0.371 inches maximum
Maximum operating temp per measurement point - 175.0 deg celsius ambient air
Mounting method - Terminal
Power rating per characteristic - 1.0 watts small-signal input power, common-collector preset
Semiconductor material - Silicon
Terminal length - 1.000 inches minimum
Terminal type and quantity - 2 uninsulated wire lead
Voltage rating in volts per characteristic - 47.0 nominal nominal regulator voltage
Voltage tolerance in percent - -5.0/+5.0
