Sensitive Switch - PN: 503494, - NSN 5930-00-504-6675 - New

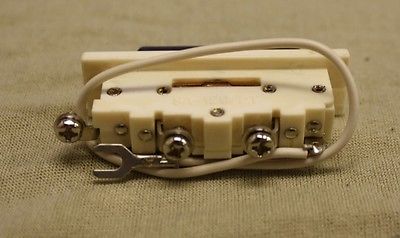

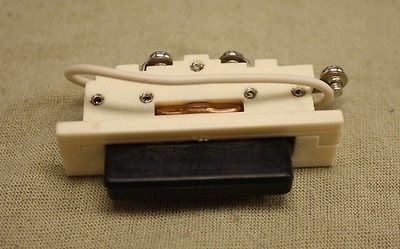

Sensitive Switch

NSN: 5930-00-504-6675
Part Numbers: 503494, SM-D-207961, A9370, SA129-PT, & SW503494

Actuator Height: 0.500 Inches Nominal
Actuator Length: 0.875 Inches Nominal
Actuator Width: 0.750 Inches Nominal
Actuator Style: Rectangular
Body Style: Hole Mounted
Hazardous Locations/Environmental Protection: Dust proof
Housing Height: 1.312 Inches Nominal
Housing Width: 0.875 Inches Nominal
Center to Center Distance Between Housing Mounting Facilities Parallel to Width: 1.375 Inches Nominal
Maximum Voltage Rating IN Volts: 125.0 AC
Enclosure Type: Fully Enclosed
Switch Release Force: 3.0 Ounces Min
Switch Actuating Force: 14.0 Ounces Max
Actuator Movement: 0.062 Over Travel Inches Min & 0.001 Differential Inches Nominal
Nonpile-UP Contact Arrangement: 1 Pole, Single Throw, Normally Open, Momentary Action Single Switch Unit
Contact Load Current Rating at Max Rated Voltage: 10.000 Amperes Resistive AC
Terminal Type & Quantity: 2 Tab, Solder Lug

Condition: New

Manufacturer: Components MAX
