Sprague Electrolytic Fixed Capacitor, 5910-00-883-4100, New

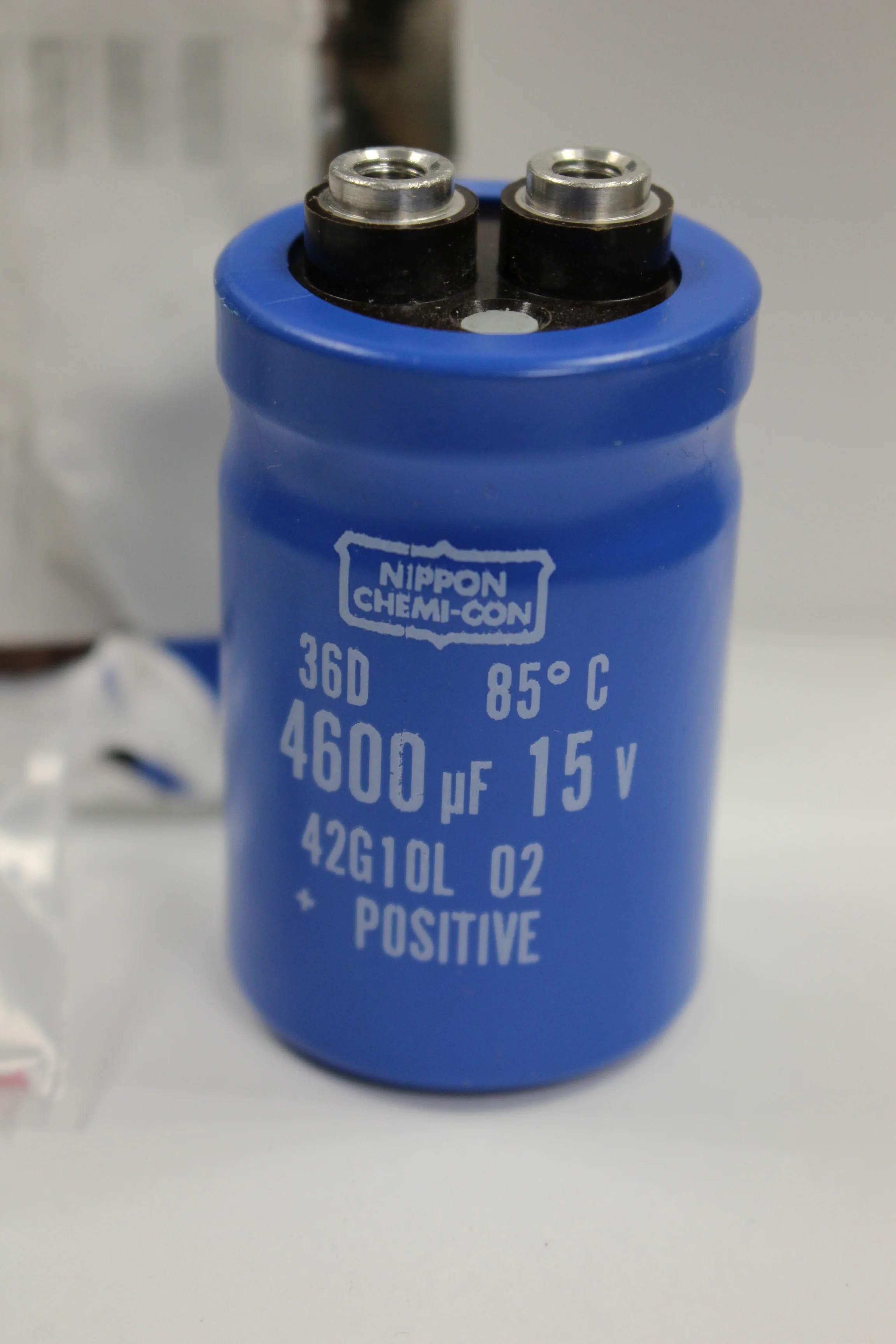

Sprague Electrolytic Fixed Capacitor

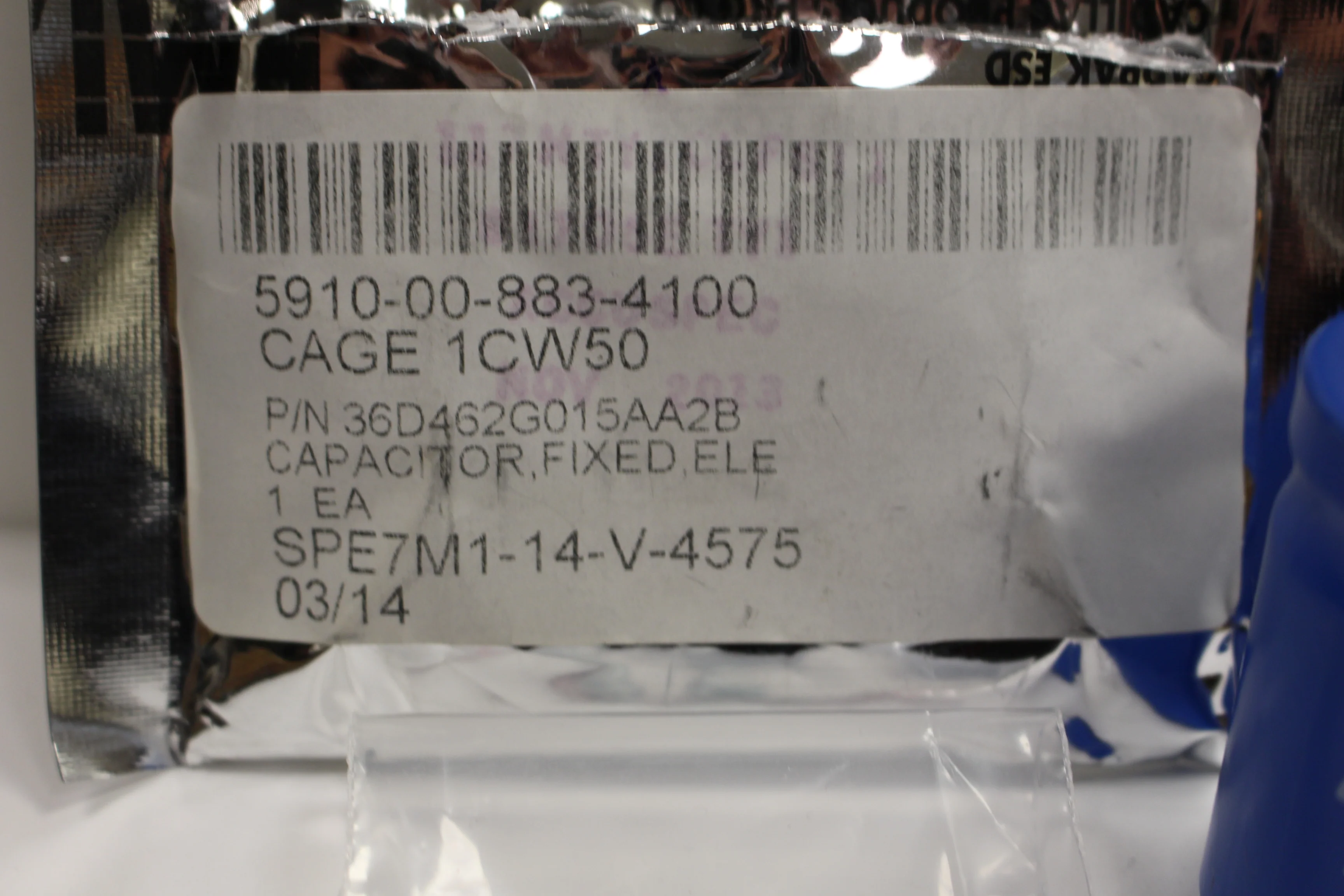

NSN: 5910-00-883-4100
Part Numbers: 36D462G015AA, 36D462G015AA2B, 652992, C1112
Terminal Length: 0.250 inches
Body Diameter: 1.438 inches
Body Length: 2.500 inches
Center To Center Distance Between Terminals Parallel To Diameter: 0.500 inches
Terminal Diameter: 0.190 inches
Schematic Diagram Designator: No common or grounded electrode (s)
Electrical Polarization: Polarized
Capacitance Value Per Section: 4600.000 microfarads single section
Nonderated Operating Temp: Between -20.0 degrees celsius and 85.0 degrees celsius
Nonderated Continuous Voltage Rating And Type Per Section: 15.0 dc single section
Tolerance Range Per Section: -10.00/+75.00 percent single section
Case Material: Metal
Capacitive Electrode Material: Aluminum
Case Insulation Material: Plastic
Terminal Type And Quantity: 2 threaded hole
Condition: New
