Torpedo Exploder Air Supply Flange to Pipe Straight Adapter - 4730-01-383-2318

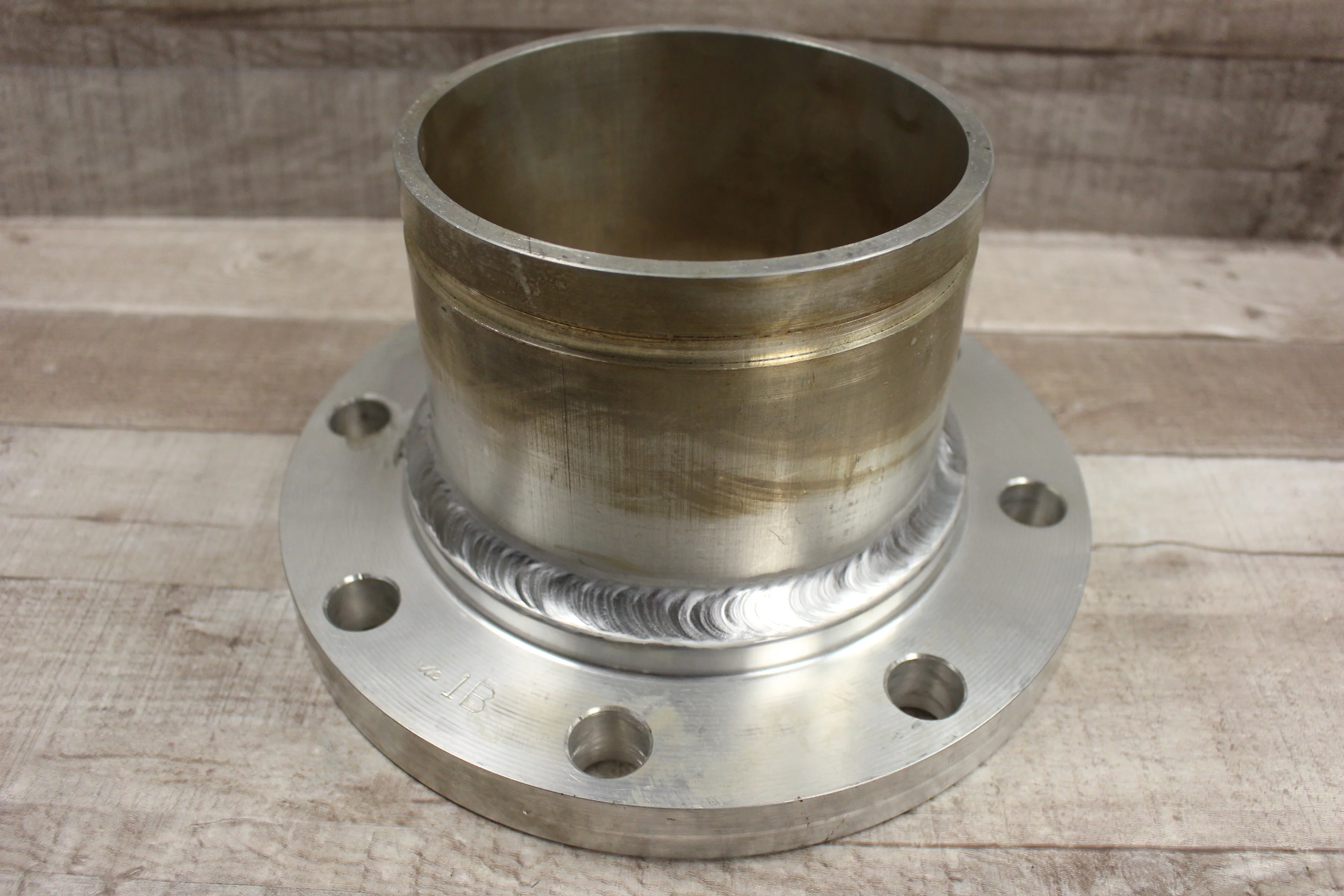

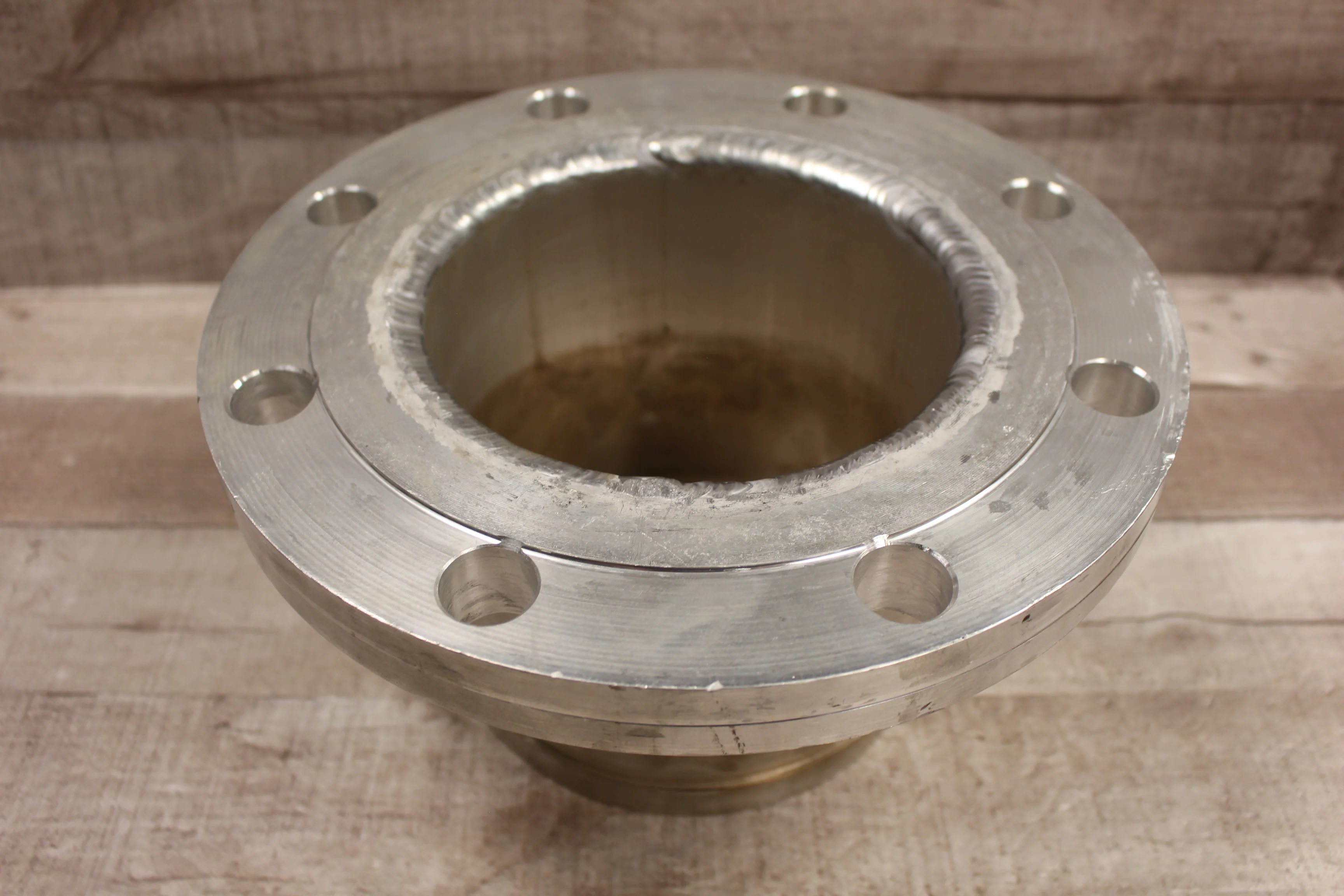

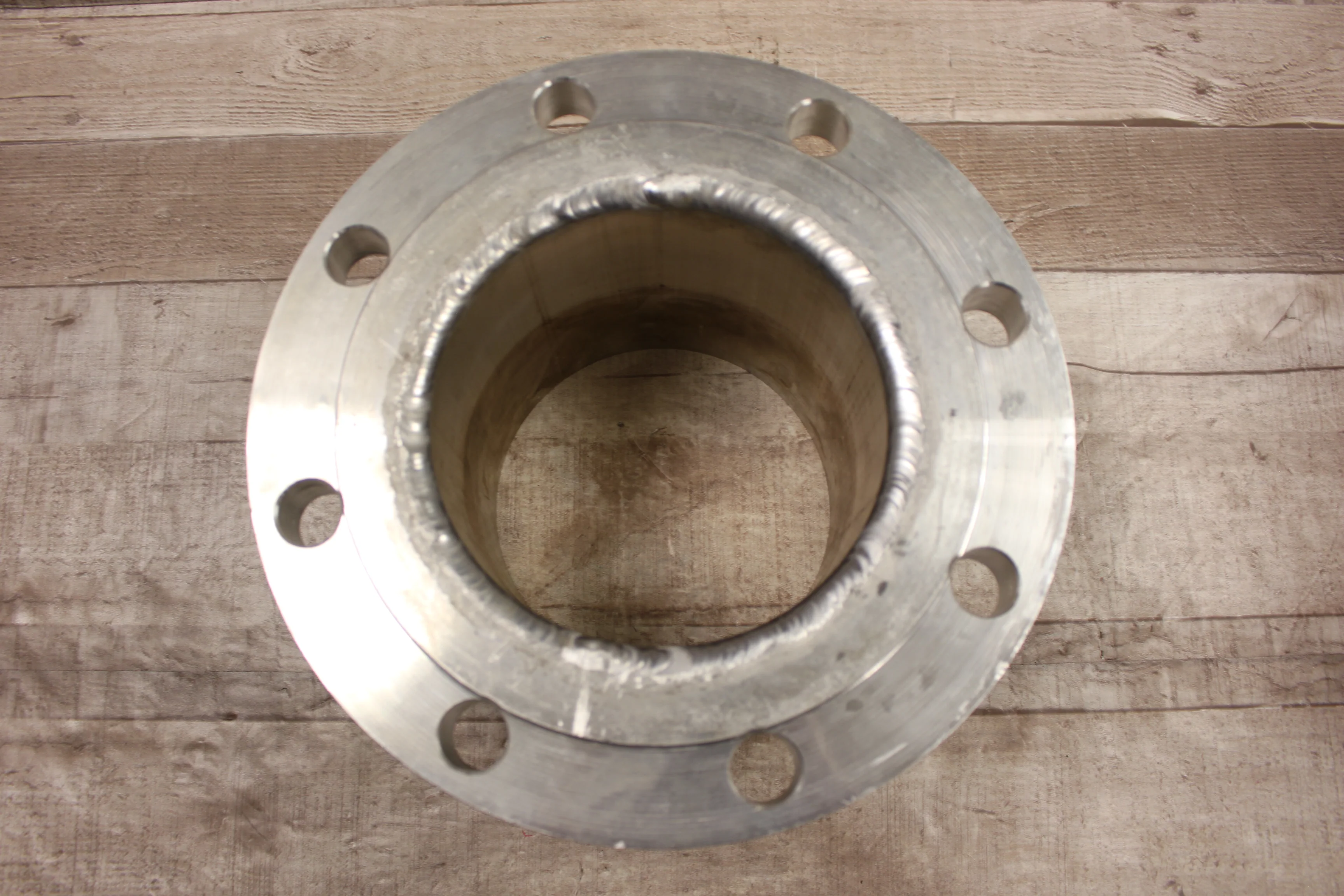

Torpedo Exploder Air Supply Flange to Pipe Straight Adapter

NSN: 4730-01-383-2318 / 4730-01-187-8051
Part Numbers: 13225E9097-3 (Cecom), 41A6IN, 45A, FE908045A00 (Victaulic Company of America), M10388-A-02-AK-1-C-6A, MIL-P-10388
New - Open Box

Nominal Pipe Size Accommodated: 6.000 inches 1ST end
Bolt Hole Quantity: 8 2ND end
Flange Shape: Round with holes 2ND end
Connection Type: Unthreaded external pipe 1ST end
Connection Type: Flange 2ND end
Nominal Outside Diameter: 11.000 inches 2ND end
Nominal Thickness: 1.000 inches 2ND end
Bolt Hole Nominal Diameter: 0.875 inches 2ND end
Bolt Circle Nominal Diameter: 9.500 inches 2ND end
Flange Face Design: Plain 2ND end
Nominal Overall Length: 6.000 inches
Material Document and Classification: QQ-A-601, T6 fed spec single material response overall
Surface Treatment: Anodize overall
Surface Treatment Document and Classification: MIL-A-8625, type 2, class 1 fed spec single treatment response overall
