TRCElectromagnetic Relay for Generator, NSN 5945-00-192-0245, P/N 70-1137, NEW!

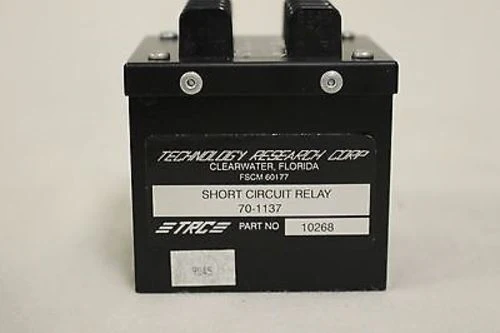

TRC Electromagnetic Relay for Generator

NSN: 5945-00-192-0245

P/N: 70-1137

Overall Length:  3.090 inches nominal
Center to Center Distance Between Mounting Facilities Parallel to Length:  1.840 inches nominal single mounting facility
Center to Center Distance Between Mounting Facilities Parallel to Width: 2.310 inches nominal single mounting facility
Overall Height :  3.440 inches nominal
Overall Width:  2.660 inches nominal
Frequency in Hertz:   50.0 min & 400.0 max
Winding Quantity: 1
Coil Quantity: 1
Duty Type:  Continuous
Mounting Facility Type and Quantity:  4 threaded hole single mounting facility
Mounting Facility Pattern:  Rectangular single mounting facility
Nonpile-up Main Contact Arrangement:  2 two circuit, both positions maintained
Operating Voltage Rating and Type at Specified Temp:  24.0 volts dc nonstandard temp single winding
Main Contact Load Current Rating at Maximum Rated Voltage:  10.0 amperes dc resistive load
Main Contact Maximum Voltage Rating in Volts:  28.0 dc

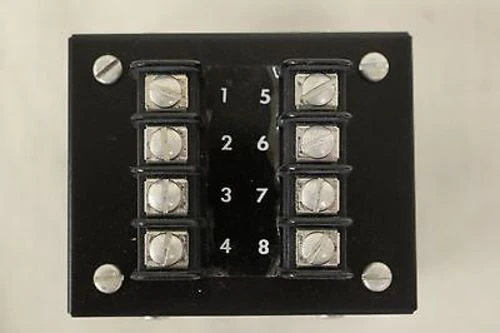

Terminal Type and Quantity:  8 screw contacts

Condition: New, has been in storage.  Box shows wear.
